iMAX® NHSIC

The cone-morse connection shows

a greater reliability (99%)

The conical connection with different emergency profiles

It’s proven that the cone-morse connection creates slits which are smaller (1μm) than bacteria (1,1-1,5μm length, 2-6μm diameter). Cone-morse connection absorbs vibration and chewing stress by eliminating the unscrewing of the screws (0.37%). Healing screws don’t ruin the connection, as happens in a traditional spin. Screws with a cone-morse connection block the microleakage during the healing period. Emergency profile for the mucous attachment. Range of heights, from 2.5 to 4 mm, for healing screws, temporary transfers and permanent abutments. Platform switching, a unique prosthesis for all the diameters. 2 helicoidal apical cuts. Conical apex with a flat tip. 55° double thread over the entire implant body for a better force discharge on cortical bone to provide excellent stability, and with a pitch of 1,2 mm (0,6 mm/thread); each turn allows to go down of 1,2mm, speeding up the insertion phase. 5° angled on the implant and the abutment.

imax nhsic narrow

Internal hex

Bone level

Surface treatment C

NHSIC-Narrow

imax nhsic regular

internal hex

Bone level

Surface treatment C

NHSIC-Regular

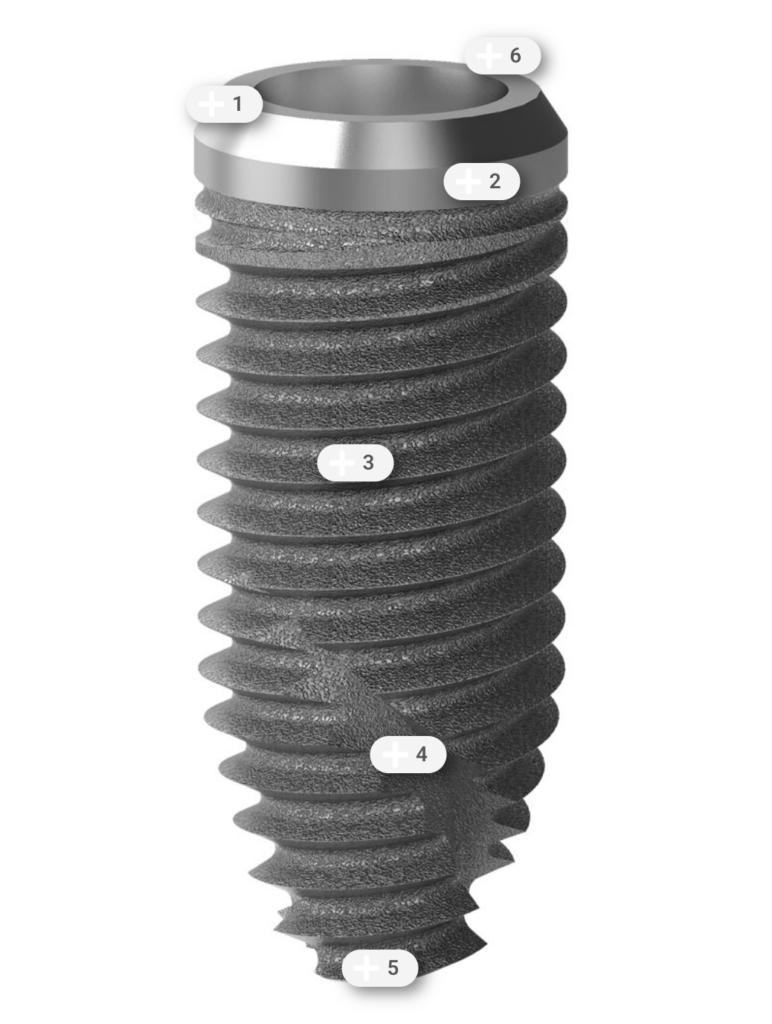

Main features

01 . Platform switching, unique prosthesis for all the diameters

02 . Around 1 mm of machined neck

03 . 55° double thread over the entire implant body for a better force discharge on cortical bone to provide excellent stability, and with a pitch of 1,2 mm (0,6 mm/thread); each turn allows
to go down of 1,2mm, speeding up the insertion phase

04 . 2 helicoidal apical cuts

05 . Conical apex with a flat tip

06 . 5° angled on the implant and on the abutment

Details

threads, connections, platforms, hex and surface treatments

Implant system

Thread

Connection

platform

Hex

treatment

iMAX NHSIC Narrow

Fine double thread

Cono-morse

Narrow

2.1 mm

C

iMAX NHSIC Regular

Fine double thread

Cono-morse

Regular

2.5 mm

C

Diameters and heights

Ø

NHSIC Narrow

NHSIC Regular

3.3

h 10 | 11.5 | 13 | 16 mm

3.75

h 8 | 10 | 11.5 | 13 | 16 mm

4.1

h 6.5 | 8 | 10 | 11.5 | 13 | 16 mm

4.7

h 6.5 | 8 | 10 | 11.5 | 13 mm

5.2

h 6.5 | 8 | 10 | 11.5 | 13 mm
